Introduction to PVC Pipe Sizing
PVC pipes are fundamental components in modern plumbing, drainage, and industrial systems. Choosing the correct pipe size is critical for ensuring proper flow, structural integrity, and compatibility with fittings. The term "medidas de cano pvc" refers to the various dimensions and standards that govern PVC pipe measurements across different applications. This guide explains the key concepts behind PVC pipe sizing, including nominal diameter, inner and outer diameters, wall thickness, and standard lengths. Understanding these measurements helps professionals and DIY users select the right pipe for each task, whether for household drainage or large-scale sewer systems.
The measurement system for PVC pipes can be confusing because the nominal size does not always match the actual physical dimensions. In many cases, the nominal size refers to the inner diameter for sanitary pipes but is based on the outer diameter for pressure-rated pipes. Additionally, different regions use either inches or millimeters as the primary unit. This article clarifies these distinctions using authoritative sources and provides a practical reference for common sizes.
Nominal Diameter and Measurement Methods
PVC pipe sizes are designated by a nominal diameter, often abbreviated as DN (from the French "diamètre nominal"). In residential and commercial plumbing, nominal sizes are expressed in both inches and millimeters. For example, a pipe commonly called 1 inch has a nominal diameter of approximately 32 millimeters, while a 4-inch pipe corresponds to about 110 millimeters. These equivalences are widely used in product catalogs and installation guides. The Home Depot Mexico provides a clear reference for these conversions, listing standard nominal sizes and their metric counterparts.
However, the nominal size does not directly indicate the pipe's actual inner or outer diameter. The measurement method depends on the pipe's intended use. For sanitary pipes (low pressure applications such as drainage and sewer lines), the nominal size refers to the inner diameter. For example, a 4-inch sanitary pipe has an inner diameter close to 4 inches. The outer diameter is slightly larger to accommodate wall thickness. According to MarketPlastics, for sanitary pipes with a nominal inner diameter smaller than 14 inches, the outer diameter is about 0.114 inches (2.9 mm) larger than the nominal size. This relationship is critical when selecting fittings and connectors, which are designed to fit the outer diameter. In contrast, pressure pipes (such as those used for water supply) are sized by their outer diameter, and the wall thickness is determined by the pressure rating schedule.

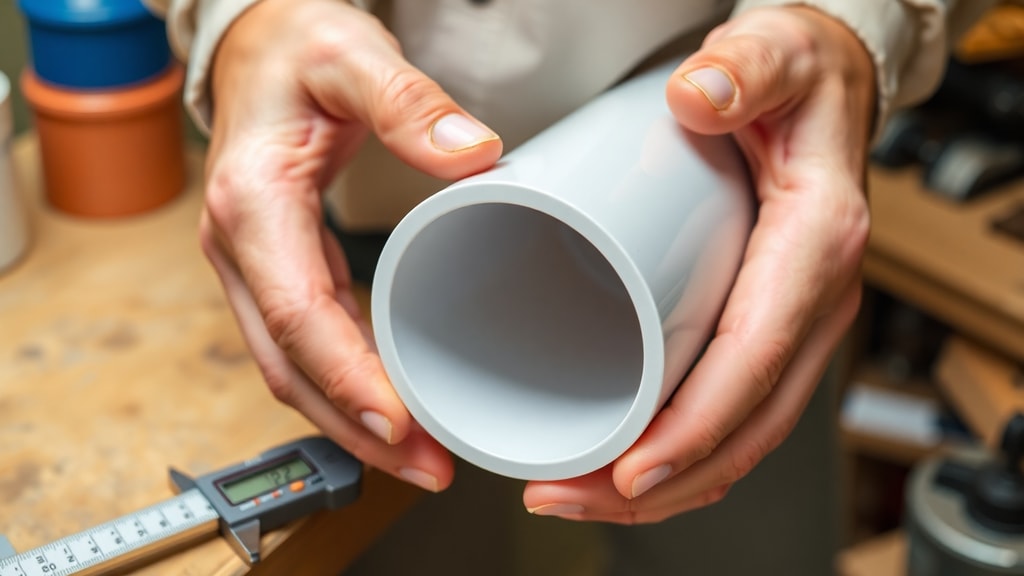

To illustrate, a common 4-inch sanitary PVC pipe has an actual outer diameter of approximately 114 millimeters, not 101.6 millimeters (which would be exactly 4 inches). This discrepancy is standardized to ensure compatibility with fittings that are molded to the same outer diameter. When measuring an existing pipe, always measure the outer diameter with a caliper to confirm the nominal size. For more details on these measurement principles, refer to the MarketPlastics guide on PVC pipe dimensions.
Common PVC Pipe Sizes for Sanitary Applications
Sanitary PVC pipes are used for gravity-fed drainage and waste systems. They are available in a range of sizes to accommodate different fixture flows and building codes. The table below lists the most common nominal sizes, their metric equivalents, typical outer diameters, and common applications. This information is based on industry standards and data from Desatascos Henares, a plumbing resource that provides diameter charts for PVC pipes.
| Nominal Size (inches) | Nominal Size (mm) | Typical Outer Diameter (mm) | Common Applications |
|---|---|---|---|
| 1 | 32 | 33.7 | Lavatory drains, bidets, sink overflows |
| 1.5 | 40 | 42.4 | Kitchen sinks, shower drains (small) |
| 2 | 50 | 54.0 | Shower drains, washing machine standpipes |
| 3 | 75 | 75.0 | Floor drains, multiple fixture connections |
| 4 | 110 | 114.3 | Toilet drains, main vertical stacks |
| 6 | 160 | 160.0 | Main sewer lines, rainwater downpipes |
The applications listed reflect typical building code recommendations. For instance, a 2-inch drain is often required for showers to handle the flow rate, while a 4-inch pipe is standard for toilets due to solid waste volume. When planning a plumbing system, always consult local codes and the Desatascos Henares size guide for region-specific requirements.
Wall Thickness and Pressure Ratings
PVC pipes used for pressurized water systems must have adequate wall thickness to withstand internal pressure. The most common standard for pressure PVC pipe is Schedule 40, which defines specific wall thicknesses for each nominal diameter. The wall thickness is not proportional to the diameter; for example, a 40 mm outer diameter Schedule 40 pipe has a thicker wall relative to its diameter compared to a 100 mm pipe. This is because smaller pipes experience higher stress from the same pressure. The Industrial Catalog referenced by Scribd provides detailed tables of Schedule 40 dimensions, including wall thicknesses for sizes from 1/2 inch to 12 inches.
For sanitary low-pressure pipes, wall thickness is less critical but still varies by size. Most drainage PVC pipes have a standard wall thickness that ensures structural rigidity for underground or above-ground installation. Below is a list illustrating typical Schedule 40 wall thickness values for selected nominal pipe sizes (based on NPS, nominal pipe size, which uses outer diameter as the base):
- 1/2 inch NPS (OD 21.3 mm): wall thickness 2.77 mm
- 1 inch NPS (OD 33.4 mm): wall thickness 3.38 mm
- 2 inch NPS (OD 60.3 mm): wall thickness 3.91 mm
- 4 inch NPS (OD 114.3 mm): wall thickness 4.50 mm
- 6 inch NPS (OD 168.3 mm): wall thickness 5.50 mm
These values are for pressure-rated pipes. For non-pressure sanitary pipes, the walls may be thinner because the pipe only needs to resist soil load and handling stress. Always check the markings on the pipe to confirm the schedule or pressure class.
Standard Lengths and Availability
PVC pipes are manufactured in standard lengths to simplify transportation and installation. The most common lengths for sanitary PVC pipes are 3 meters, 5 meters, and 6 meters. In many hardware stores, 3-meter sections are popular for DIY projects because they are easier to handle and cut. For larger diameter pipes, such as those exceeding 300 mm (12 inches), manufacturers often produce shorter segments, typically around 2.2 meters, due to weight and shipping constraints. According to Obramat, industrial PVC pipes with diameters above 2400 mm may be produced in even shorter sections to ensure structural stability during transport.
The length also affects the number of joints required in a system. Longer pipes reduce the need for couplings, which can lower installation time and potential leak points. However, longer sections may require special handling equipment for large diameters. When ordering pipe for a project, verify the available lengths from your supplier and consider the layout of the system to minimize waste.
Choosing the Right PVC Pipe Size
Selecting the correct PVC pipe size involves several factors: the type of fluid (water, sewage, or chemical), the pressure requirements, the flow rate, and the building code. For gravity drainage, the pipe diameter must be large enough to prevent clogging and ensure self-cleaning velocity. A common rule of thumb is to use 4-inch pipes for toilets and main stacks, 2-inch for showers, and 1.5-inch for sinks. For pressurized systems, the pipe must be rated for the maximum expected pressure, and the diameter is chosen to limit velocity and pressure drop.
Always measure existing fittings and pipes before purchasing replacements. Use a caliper to determine the outer diameter if the nominal size is unknown. Many manufacturers print the nominal size and schedule on the pipe itself, but this may be faded or missing on older installations. When in doubt, consult the references provided in this guide or seek guidance from a plumbing professional.
References
The Home Depot Mexico. "Usos y medidas de los tubos de PVC." https://www.homedepot.com.mx/plomeria/usos-y-medidas-de-los-tubos-de-pvc. Accessed 2025.
MarketPlastics. "Tubos PVC medidas." https://marketplastics.com/tubos-pvc-medidas/. Accessed 2025.
Desatascos Henares. "Diámetros de cañerías PVC en mm." https://www.desatascoshenares.com/blog/diametros-canerias-pvc-mm/. Accessed 2025.
Scribd. "04 Tuberías y Fitting" (Industrial Catalog). https://es.scribd.com/document/435670905/04-tuberias-y-Fitting. Accessed 2025.
Obramat. "Medidas y largos estándar de tubería PVC." Information cited in construction materials catalog. Accessed 2025.
